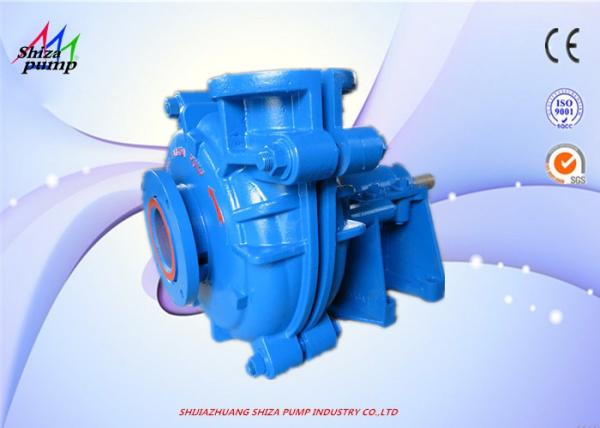

Small Centrifugal Solid Heavy Duty Hydraulic Pump For Mine Dewatering Abrasion Resistant

Product Categories

Shijiazhuang Shiza Pump Industry Co.,Ltd.

Contact Now

Small Centrifugal Solid Heavy Duty Hydraulic Pump For Mine Dewatering Abrasion Resistant

Name: Small Centrifugal Solid Heavy Duty Hydraulic Pump For Mine Dewatering Abrasion Resistant
Brand: SHIZA
Price: 1 USD

Brand Name : SHIZA

Model Number : 4/3E-HH

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : based on quantity

Supply Ability : 200sets monthly

Delivery Time : 15days

Packaging Details : wooden case

Product name : Iron Ore Volcanic Mud Ash Solid Slurry Pump

Application : mine dewatering pump

Drive type : ZVZ DC

Model : HH

After-Sales : Provide

Country : China

Contact Now

Abrasion Resistant Hydraulic Solid Slurry Transfer Pump,Small Centrifugal Mining Dirty Water With Solid Slurry Pump

Features

1. High chrome alloy lining allows for various abrasive material handling;
2. Large handling size means fewer clogged impellers;
3. Robust design allows it to be in difficult application environments;

4. High efficiency enables it save large energy;

5. Strong abrasive resistance material means long life cycle and low maintenance cost;

6. Replaceable wear metal liner means simple maintenance.

Pump performance table

MODEL	ALLOWABLE MATING MAX.POWER (KW)	MATERIAL		CLEAN WATER PERFORANCE						IMPELLER
		LINER	IMPELLER	Q Capacity		H Head	Speed	Max. Eff.	NPSH	VANES NO.	IMPELLER DIA
		LINER	IMPELLER	m3/h	L/s	(m)	n(r/min)	(%)	(m)		(mm)
1.5/B-	15	M	M	12.6-28.8	3.5-8	6-68	1200-3800	40	2--4	5	152
1.5/B-	15	RU	RU	10.8-25.2	3--7	7-52	1400-3400	30	2--4	3	152
1/1.5B-	15	M	M	16.2-34.2	4.5-9.5	25-92	1400-2200	20	2-5.5	5	330
2/1.5B-	15	M	M	32.4-72	9--20	6-58	1200-3200	45	3.5-8	5	184
2/1.5B-	15	RU	RU	25.2-54	7--15	5.5--41	1000-2600	50	2.5-5	5	178
3/2C-	30	M	M	39.6-86.4	11--24	12-64	1300-2700	55	4--6	5	214
3/2C-	30	RU	RU	36-75.6	10--21	13-46	1300-2300	60	2--4	5	213
3/2D-HH	60	M	M	68.4-136.8	19-38	25-87	850-1400	47	3-7.5	5	457
4/3C-	30	M	M	86.4-198	24-55	9-52	1000-2200	71	4--6	5	245
4/3C-	30	RU	RU	79.2-180	22-50	5-34.5	800-1800	59	3--5	5	245
4/3E-HH	120	M	M	126-252	35-70	12-97	600-1400	50	2--5	5	508
6/D-	60	M	M	162-360	40-100	12-56	800-1550	65	5--8	5	365
6/D-	60	RU	RU	144-324	40-90	12-45	800-1350	65	3--5	5	365
6/4S-HH	560	M	M	324-720	90-200	30-118	600-1000	64	3-8	5	711
6S-HH	560	M	M	468-1008	130-280	20-94	500-1000	65	4-12	5	711
8/6E-	300	M	M	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6E-	300	RU	RU	324-720	90-200	7-49	400-1000	65	5-10	5	510
10/8E-M	120	M	M	666-1440	185-400	14-60	600-1100	73	4-10	5	549
10/8ST-	560	M	M	612-1368	170-380	11-61	400-850	71	4-10	5	686
10/8ST-	560	RU	RU	540-1118	150-330	12-50	400-750	75	4-12	5	686
12/10ST-	560	M	M	936-1980	260-550	7-68	300-800	82	6	5	762
12/10ST-	560	RU	RU	720-1620	200-450	7-45	300-650	80	2.5-7.5		762
14/12ST-	560	M	M	1260-2772	350-770	13-63	300-600	77	3-8	5	965
14/12ST-	560	RU	RU	1152-2520	320-700	13-44	300-500	79	3-10		965
16/14TU-	1200	M	M	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
20/18TU-	1200	M	M	2520-5400	700-1500	13-57	200-400	85	5-10	5	1370

Working principle

SHIZA BRAND The main working parts of centrifugal type pump that is impellers, impeller installed in the axle, to be the complete one with motor. When the motor is working to driv the impellers, the impellers will impact the material pulp.after that increase the press energy and motion energy. Under inertia and with high pressure, the material pulp will through the pipe to discharge.
