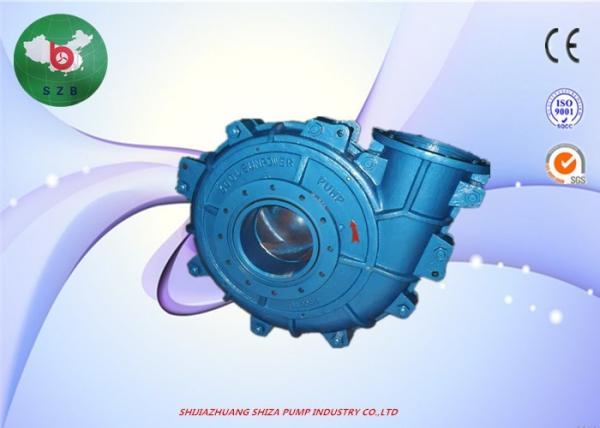

High Head Abrasive Industrial Centrifugal Water Pumps 300S - L Dewatering 100m

Name: High Head Abrasive Industrial Centrifugal Water Pumps 300S L Dewatering 100m
Brand: SHIZA
Price: 1 USD

China High Head Abrasive Industrial Centrifugal Water Pumps 300S - L Dewatering 100m wholesale

Brand Name : SHIZA

Model Number : 150E-L

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : based on quantity

Supply Ability : 200sets monthly

Delivery Time : 15days

Packaging Details : wooden case

Colour : Customized

MOQ : 1 set

Original : China

pump model : 300S-L model slurry pump

Inlet : 150mm

bracket type : E type bracket

Contact Now

300S-L model slurry pump Mine Dewatering High Head 100m Slurry Pump, Centrifugal Heavy Duty Anti

Abrasive Slurry Pump

Product overview for 300S-L model slurry pump
1. light duty slurry pump . They are suitable for delivering low abrasive low density slurry for metallurgical ,mining ,coal and building material departments.

2. The shaft seal can adopt gland seal ,expeller seal or mechanical seal .

3. Type L(R) pumps operate in high speed with small volumes and light weight to save floor area

4. It is mainly used to transport the slurry which contains fine particle size and weight concentration

not more than 30%.The liner and impeller of this pump can be changeable ,either with anti-abrasive

metal or rubber material .

Type meaning of 300S-L model slurry pump

Type meaning for 300S-L model slurry pump
300S-L
300	Pump outlet 300mm
S	pump bracket type S
L	Low abrasion slurry pump

Quality control for 300S-L model slurry pump

Inspection Equipment
1. Inspection and Detection
With various inspection and detection instruments ,like three-coordinate measuring instrument ,metallographic microscope, direct reading spectrometer ,Brinell hardness meter ,Vickers hardness meter, carbon and sulfur analyzer and other detection equipment,we can carry on the chemical composition analysis ,physical properties test ,coordinate measurement for various steel&steel materials
Complete pump set inspection
We have performance testing platform for each batch pump inspection before delivery
Quality control system for each set slurry pump
Purchasing raw material ra	1. Strict rules and procedures to choose the raw material supplier
	2. Each batch raw material will be tested by quality control department
C casting of parts	1 .Melting:Chemical element analysis for raw material before and after stove .
	2.Moulding :Strict sand moulding qualified before iron liquid pouring for casting
	3. Cleaning semi-finished parts sand :Strict inspection on the appearance and size qualified before storage.
Machining of slurry pump	1. Self -inspection and inspection between different steps.
	2. First part inspection
	3. Procedures inspection
	4..Inspection before storage the mining slurry pumps
A Assembling of sl slurry pump	1. Inspector tracks the whole process of assembly of slurry pumps
	2. Slurry Pump pressure inspection and fillout the testing table
	3. Painting inspection
	4. Performance testing and fillout the testing table
	5. Packing inspection of slurry pump
	6. Issue quality certificate

Performance Chart

type	Max.	ClearWaterPerformance					Impeller		Application
		ClearWaterPerformance					Impeller
		Capacity	Head/m	Speed/rpm	Efficiency	NPSH	Nos	Diameter


20 A-L	7.5	2.34-10.8	6-37	1400-3000	30	3.5-8	4	152.4	-Ball mill discharge
50 B-L	15	16.2-76	9-44	1400-2800	55	3.5-8	5	190	-Coarse tailings
75 C-L	30	18-151	4-45	900-2400	57		4	229	-Rod mill discharge
100 D-L	60	50-252	7-46	800-1800	60		4	305	-Coal washing
150 E-L	120	115-486	12-51.5	800-1500	65		4	381	-Wet crushers
200 E-L	120	234-910	9.5-40	600-1100	64		4	457	-Phosphate matrix
250 F-L	120	396-1425		500-800	77		5	550	-Minerals concentrate
300 S-L	560	468-2538	8-60	400-950	79		5	653	-Lime grinding
350 S-L	560	650-2800	10-59	400-840	81		5	736	-FGD waste water
400 ST-L	560	720-3312	7-51	300-700	80		5	825	-Flotation
450 ST-L	560	1008-4356	9-48	300-600	80		5	933	-Process chemical
550 TU-L	1200	1980-7900	10-50	250-475	86		5	1213	-Pulp and paper
