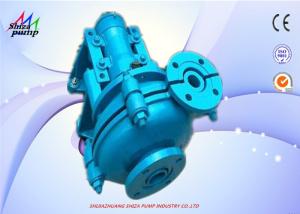

Cast Steel High Chrome Slurry Pump Corrosion Resistant 39.6 - 86.4 M³ / H Capacity
Product overview
1.Material: The pump body has a replaceable metal lining or rubber lining. The impeller is made of wear-resistant metal or rubber.
2.Conveying medium: conveying strong abrasion, high concentration slurry
3.Shaft seal: can be filled with packing or centrifugal seal
4.Scope of application: mining, electric power, metallurgy, coal, building materials
5.Product advantages: long life, high efficiency, low energy consumption, high reliability, multi-level series connection
Structural features
The tubular structural bearing assembly is designed with high-capacity bearings. The bearings are greased and oil lubricated to suit different operating conditions.
The gap between the impeller and the guard plate can be adjusted to ensure efficient operation of the pump.
The shaft seal adopts packing seal, impeller seal and cartridge mechanical seal to meet different working conditions.
The pump and the drive can be driven by a direct drive, a V-belt drive, a fluid coupling drive, and a reducer drive.
The pump outlet direction can be rotated at 8 angles to accommodate different field installation conditions.
Typical Applications:
-Ash Handling
-Cyclone Feeds
-Pulp and Paper
-Abrasive Slurries
-Coal Preparation
-Mineral Processing
-Aggregate Processing
-Mill Discharge
-Process Pumps
Specifications
| Pump Model | 3 / 2 C- |
| Allowable Max.Power | 30 kw |
| Capacity | 39.6 - 86.4 m³/h |
| Head | 12-64 m |
| Speed | 1300-2700 |
| Max.Efficiency | 55% |
| NPSH | 4 - 6 m |
| Impeller Diameter | 214 mm |
Type meaning
| Type meaning for mineral centrifugal slurry pump |
| 3/2 C-R |
| 3 | Pump inlet size (inch ) 3 |
| 2 | Pump outlet size (inch)2 |
| C | Bracket type |
| slurry pump |
| R | R-Rubber liner pump |
Selection And Performance Chart
