Multiple Stages Centrifugal Slurry Pump High Corrosion Low Pressure With A05 Material

8 / 6 E - Multiple Stages Centrifugal Slurry Pump High Corrosion Low Pressure With A05 Material

Product overview

8/6E- slurry pump bearing assembly: The bearing assembly of the pump adopts a cylindrical structure, which is convenient for adjusting the clearance between the impeller and the throatbush. It can be removed as a whole during maintenance. The bearing is greased.

Shaft seal (sealing): The shaft seal type of the pump has packing seal, impeller seal, mechanical seal.
Transmission mode: V-type triangular belt drive, elastic coupling drive, gear reducer drive, hydraulic coupling drive, frequency conversion drive device, silicon controlled speed regulation, etc. V-type triangular belt drive has CL, CV, CR, ZL, ZV, ZR transmission.
The overall performance of the slurry pump: the pump has a wide performance range, good cavitation performance and high efficiency. Multi-stage series technology can be used to meet long-distance transportation. Wetted parts are available in a variety of metals and increase depth. Using a variety of speeds and a variety of variants, the pump operates under industrial and mining. Long service life, high operating efficiency, can meet a variety of poor transport conditions.

Basic Information

Pump Model:8 / 6 E -

Allowable Max.Power:120 kw

Capacity:360-828 m³ / h

Head:10-61 m

Speed:500-1140 r / min

NPSH:2-9 m

Max.Efficiency:72%

Impeller Diameter:510 mm

Type meaning

Advantages of 8/6 E- slurry pump

-Wear resistant metal or rubber wet end parts, long service life

-Wide options for impeller

-Various types of pump seals to suit different working condition

-Grease or oil lubrication

-Discharge branch can be positioned at intervals of 45 degree

-Can be installed in multistage series
-Easy to maintain

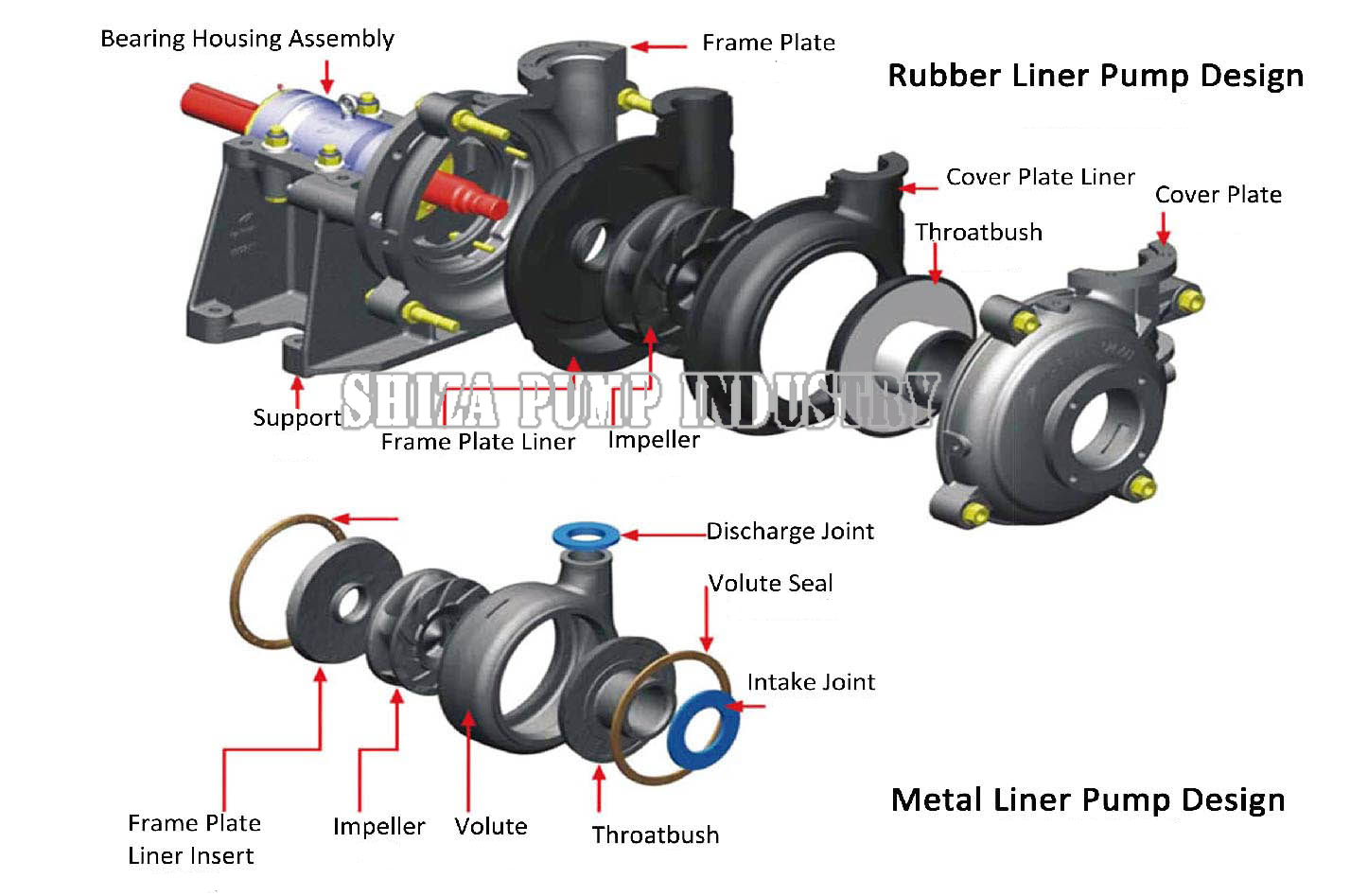

Structure of slurry pump

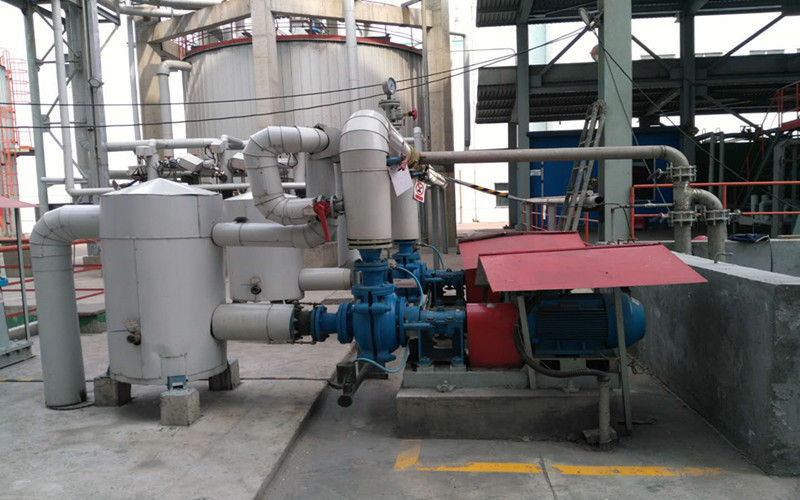

Working operation

high density solids pump

dry sand pump
